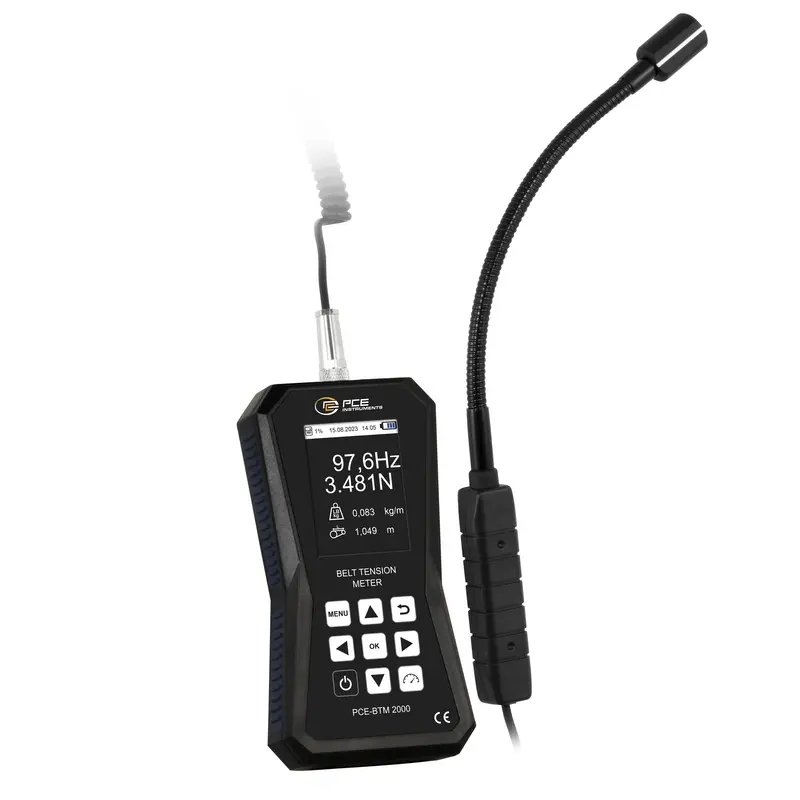

PCE Instruments PCE-BTM 2000L Belt Tension Meter
Features
- Measurement of the oscillation frequency of the drive belt
- Intuitive controls
- Calculation of the tension force
- Display of the belt tension in N
- 6 menu languages
- Memory for 750 measured values
- Sensor on gooseneck
- Input of belt length and belt mass
Technical Specifications
| Measuring range | 10 ... 900 Hz |
| Accuracy | ± (1% of rdg. + 4 digits) |
| Repeatability accuracy | ± 1 Hz |
| Resolution | <100 Hz: 0.1 Hz |
| >100 Hz: 1 Hz | |
| Belt length | max. 9,999 m |
| Belt mass | max. 9,999 kg/m |
| Sensor length | 25 cm / 9,8 in |
| Memory | 750 measured values |
| 15 sets of 50 measuring points | |
| Menu languages | German, English, Spanish, |
| French, Italian, Dutch | |
| Power supply | 3 x 1.5 V AA batteries |
| Operating conditions | 0 ... 50 °C / 32 ... 122 °F; max. 95 % R.H. |
| Storage conditions | -20 ... 65 °C / -4 ... 149 °C; max. 95 % R.H. |
| Dimensions | 150 x 80 x 38 mm / 5.9 x 3.1 x 1.4'' |
| Weight | ca. 200 g / 7 oz incl. batteries |
Delivery Scope
- 1 x Belt Tension Meter PCE-BTM 2000L
- 1 x Gooseneck sensor (extra long)
- 3 x 1.5 V AA battery
- 1 x Operating instructions
- 1 x Carrying bag
