Mitutoyo Contracer CV-2100 | Contour Measuring Instrument

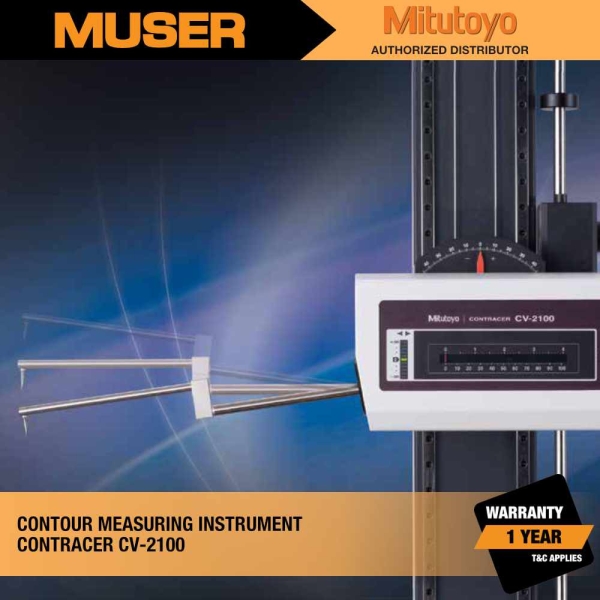

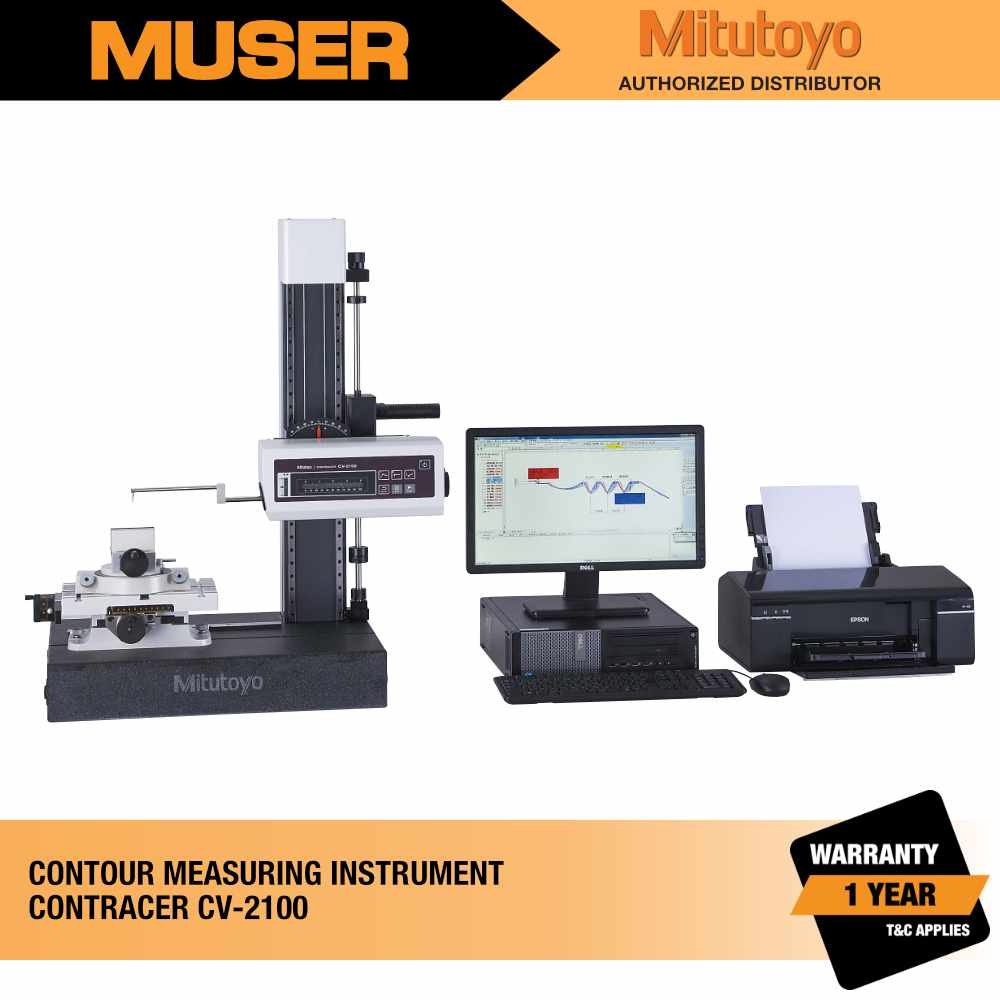

The Mitutoyo Contracer CV-2100 contour measuring instrument provides highly accurate, highly efficient measurements that is easy to set up. This measuring instrument is equipped with a drive unit inclination mechanism that enables inclined-plane measurement to accurately measure difficult to measure workpiece features. The Digital ARC Scale directly tracks the arc trajectory of the stylus tip so the most accurate compensation can be applied to the scale output for both higher accuracy and resolution.

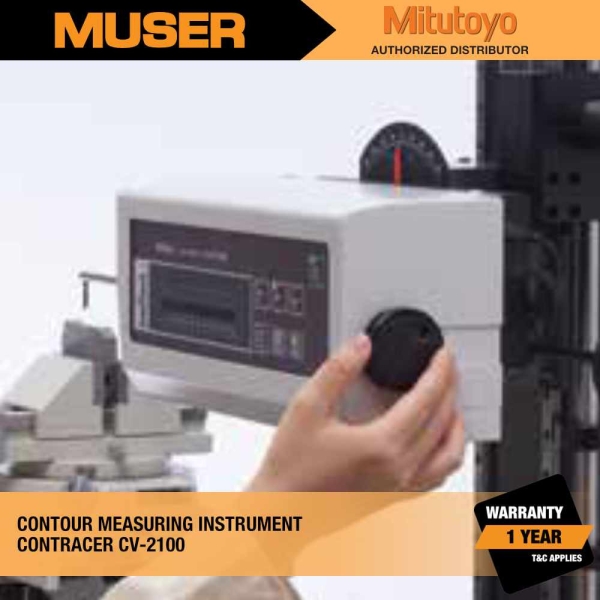

  • Quick-release grip handle allows for rapid traverse in column Z-axis for CV-2100M4
  • Key operation buttons are mounted onto the X-axis drive unit, eliminating a wired remote box
  • X-axis traverse speed, up to 20mm/s, allows for quick positioning and set-up time
  • Motorized stylus movement means high-volume repetitive measurements are now capable with part programming
  • CV-2100N4 model can be easily mounted to optional manual column stand or custom fixture supplied by end user
Technical Data

Model No. CV-2100M4 CV-2100N4
Measuring range X axis 100 mm
Z1 axis (detector unit) 50 mm
Z2-axis (column) travel range 350 mm -
X-axis inclination angle ±45°
Resolution X axis 0.1 μm
Z1 axis 0.1 μm
Drive method X axis Motor (0 to 20 mm/s)
Vertical travel (Z-axis column) Manual (Quick-vertical-motion, fine) -
Measuring speed 0.02, 0.05, 0.1, 0.2, 0.5, 1.0, 2.0, 5.0 mm/s
(when the X axis is horizontal)
2.5 μm/100 mm
Accuracy (20 °C) X axis ±(2.5+0.02L) μm L = Measurement Length (mm)
Z1 axis ±(2.5+|0.1H|) μm H = Measurementt height from horizontal position within ±25 mm
Measuring direction Both pulling and pushing directions
Measuring face direction Downward direction
Measuring force 30±10 mN(3 gf)
Traceable angle
(using the standard stylus)
Ascent 77°, Descent 87° (according to surface property)
External dimensions (W×D×H) 745×450×885 mm 651×143×138.5 mm
Mass 145.8 kg 5.8 kg
