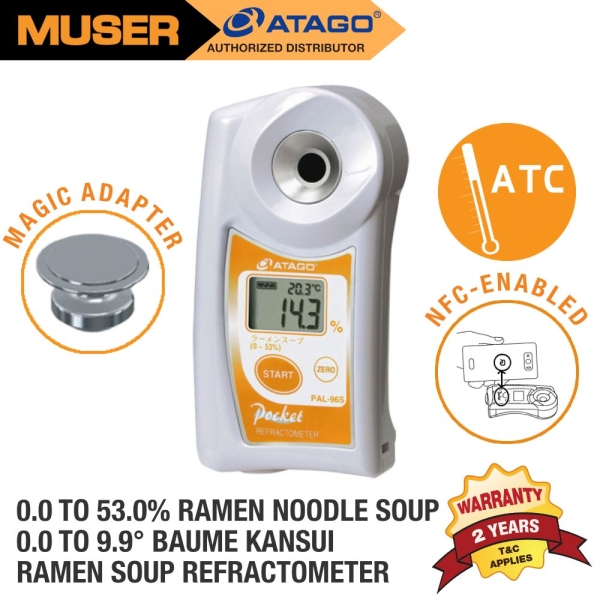

Atago PAL-96S | Ramen Soup Refractometer
Atago PAL-96S Ramen Soup Refractometer
This is the essential item in creasing your Ramen. This model can measure not only the concentration of Soup and Tare but also baume of kansui used during making the noodle. For user testimonials of Japanese famous ramen restaurants, click here.
Features
 |
• Water resistant (IP65) • Can be washed under running water |
 |
• External Light Interference (ELI) • To ensure accurate measurement results, the PAL is programmed with the ELI function which displays the [nnn] warning message when intense direct light is detected. |
 |
• High temperature samples can be measured |
 |
• The sample stage is made of metal |
 |
• Sample size: 2-3 drops |
 |
• Calibration with water only |
 |
• Measuring time: 2-3 seconds! |
 |
• Automatic Temperature Compensation (ATC) |
 |
• Display screen: Backlight |
 |
• NFC feature • Measurement history (up to 100 items) can be read by touching a contactless IC card reader / writer connected to a compatible Android smartphone or a personal computer. |
Specifications
| Model | PAL-96S |
| Cat.No. | 4496 |
| Scale |
Ramen noodle soup Baume Kansui |
| Range |
Ramen noodle soup : 0.0 to 53.0% Baume Kansui : 0.0 to 9.9° |
| Accuracy |
Chinese noodle soup : ±0.2% Baume Kansui : ±0.3° |
| Temperature compensation | 10 to 100ﾟC |
| Sample Volume | 2 to 3 drops |
| Measurement Time | About 3 seconds |
| Power Supply | 2 × AAA Batteries |
| Battery Life | About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only) |
| International Protection Class | IP65 Water resistant |
| Dimensions & Weight | 5.5 × 3.1 × 10.9cm 100g (main unit only) |
Options
- PAL-CASE : RE-39409
- PAL Silicone Cover : RE-39413
- STRAP : RE-39410
Downloads
- Ramen Brix/Salt Meter Catalog (Tokyo Version)
- Ramen Brix/Salt Meter Catalog (Kansai Version)
- Ramen Brix/Salt Meter Catalog (Kyushu Version)
