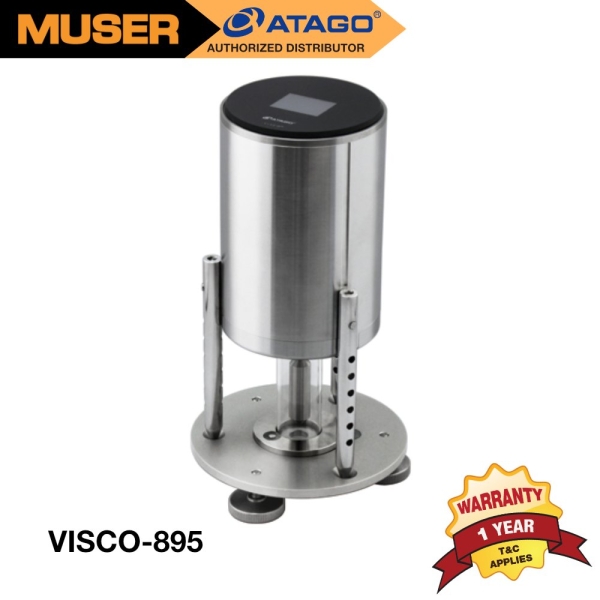

Atago VISCO-895 | Digital Viscometer
Atago VISCO-895 | Digital Viscometer
By changing the material used for body, legs and stand to alminium, unit weight is now 895g as described in the model name. Appearance and all features remain unchanged, while achieving 25% weight reduction compared to existing VISCO™.
Specifications
| Model | VISCO-895 |
| Cat.No. | 6820 |
| Measurement item | Viscosity・Temperature・Torque% |
| Range |
Viscosity： A1 50 to 200,000mPa・s / 50 to 200,000cP A2 100 to 600,000mPa・s / 100 to 600,000cP A3 500 to 2,000,000mPa・s / 500 to 2,000,000cP UL 1～2,000mPa・s Torque：0.0 to 100.0％ (recommended torque: 10.0 to 100.0％) |
| Speed |
0.5 to 250rpm Number of Speeds: 20 |
| Accuracy |
Viscosity: ±1% of Maximum Viscosity (Refer to the 'Maximum Measurement Values Guideline Chart,' from p.34) Temperature: ±0.2℃ |
| Power Supply |
LR6 / AA alkaline batteries (x4) AC adapter |
| Computer Communication | Output: USB - PC |
| Dimensions & Weight | Main unit：120(W)ｘ120(D)ｘ200.6(H)mm / 0.895kg |
Options
- Temperature sensor : RE-75540
- SpindleA1 : RE-77104
- SpindleA2 : RE-77105
- SpindleA3 : RE-77106
- BeakerS : RE-79100
- BeakerL : RE-79101
- Cup Adaptor : RE-78141
- Paper Cup : RE-79102
- Plastic Cup : RE-79103
- Standard liquid JS200 : RE-89016
- Standard liquid JS500 : RE-89017
- Standard liquid JS2000 : RE-89019
- Ultra Low Adapter (ULA)- Sample Adapter for Low Viscosity Sample : RE-77120
