Atago Polarimeter POLAX-2L [Code 5223]
Atago Polarimeter POLAX-2L [Code 5223] Polarimeter / Saccharimeter Atago Kuala Lumpur (KL), Malaysia, Selangor, Sunway Velocity Supplier, Suppliers, Supply, Supplies | Muser Apac Sdn Bhd

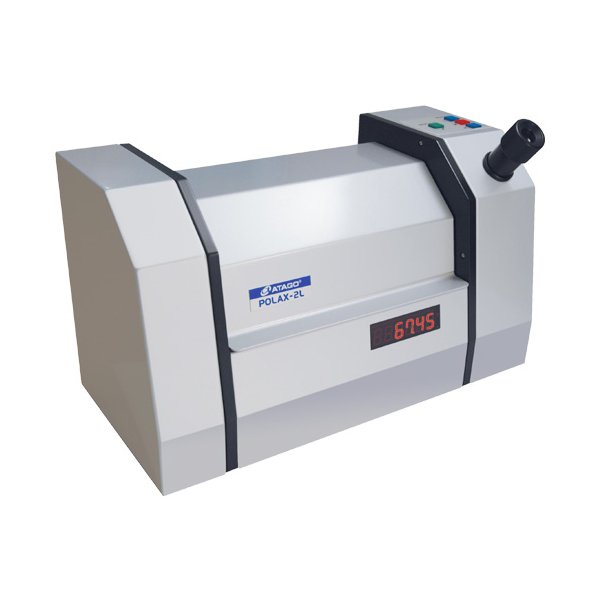

Atago Polarimeter POLAX-2L
  Digital display
  AC outlet (AC100 to 240V)
Polarimeter, which is known as an optical rotation meter, is an instrument to measure optical rotation of "optically active matter" such as saccharin, ascorbic acid and sodium glutamate.

Model POLAX-2L
Cat.No. 5223
Scale Angle of rotation
International sugar scale
Measurement Range Angle of rotation : -179.95° to +180.00°
International sugar scale : -130.0°Z to +130.0°Z
Resolution Angle of rotation : 0.05°
International sugar scale : 0.1°Z
Measurement Accuracy Angle of rotation : ±0.10°
International sugar scale : 0.3°Z
Temperature compensation range 5 to 40°C
Light source LED with interference filter
Measurement Wavelength 589nm (equivalent to the sodium-D line spectrum)
Power Supply AC100 to 240V 50/60Hz
Included Accessories Observation tubes : 100mm tube and 200mm tube / each
Dimensions & Weight 43×22×30cm, 10.3kg
(Main Unit only)

* Calibration Certificate : Contact us for details.

  • Observation tube 50mm long OT-50(P) 2.5mL : RE-6722
  • Observation tube 100mm long OT-100 (P) 5mL : RE-6720
  • Observation tube 200mm long OT-200 (P) 10mL : RE-6721
  • Small volume tube 100mm long (OT-100M) : RE-6708
  • Deck glass : RE-6712
  • Rubber packing for observation tube : RE-6713
  • Ring nut for observation tube : RE-6714
  • Rubber packing for small volume tube : RE-6715
  • Ring nut for small volume tube : RE-6717
  • Midget fuse (1A) : RE-5784
Catalog Download
